The Project Manager's Guide to Commercial HVAC Design & New Construction

Choosing the right HVAC system for a new commercial building is one of the most consequential decisions you'll make. It’s not just about temperature control; it's a major capital investment that directly impacts your building's long-term financial performance. In fact, HVAC systems account for a staggering 39% of all energy used in commercial buildings in the United States.

Getting it right means decades of efficiency, comfort, and predictable operational costs. Getting it wrong leads to budget overruns, energy waste, and persistent tenant complaints.

This guide is designed for you—the project manager, building owner, or developer. It bridges the gap between high-level overviews and dense engineering manuals. We’ll walk you through the entire project lifecycle, from initial design concepts to final commissioning, providing a clear framework to de-risk your investment and ensure you select the right system and the right partner for the job.

Phase 1: The Design Blueprint – Planning for Performance

Before a single piece of ductwork is ordered, the most critical work happens on paper. A successful HVAC project is built on a foundation of meticulous planning and precise calculations. Rushing this phase is the single biggest mistake we see.

The Non-Negotiables of HVAC Design

Your design partner should start with three core elements:

1. Load Calculations (Manual J/N): This isn't a ballpark estimate. It's a scientific analysis of your building's unique thermal characteristics. It accounts for everything: square footage, window efficiency, insulation levels, ceiling height, building orientation, occupancy load, and even the heat generated by equipment. An accurate load calculation ensures your system isn't oversized (wasting energy) or undersized (failing to keep up on peak days).
2. Ventilation and Indoor Air Quality (ASHRAE Standards): Modern buildings are built to be airtight for energy efficiency, but that can trap pollutants. Adhering to standards from ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers) is crucial for ensuring a steady supply of fresh, clean air. This directly impacts occupant health, productivity, and satisfaction.
3. Code Compliance: Beyond performance, your system must meet local and national building and energy codes. An experienced partner navigates these requirements seamlessly, preventing costly delays during inspections.

Proper planning at this stage sets the entire project up for success. Learn more about the critical first steps in our guide to HVAC installation.

Decoding the Alphabet Soup: A Guide to Commercial HVAC Systems

Once you understand your building's specific needs, you can evaluate the right type of system to meet them. Here’s a breakdown of the most common options.

The Bottom Line: Budgeting for Your Commercial HVAC Project

Understanding the costs involved is crucial for effective project planning. While every project is unique, we can establish a reliable baseline.

According to industry data, new commercial HVAC installations typically range from $20 to $33 per square foot, depending on the complexity of the system and the type of building. A simple warehouse might be on the lower end, while a hospital or lab with specialized requirements would be at the higher end.

However, the upfront installation cost is only part of the equation.

Beyond Installation: Total Cost of Ownership (TCO)

A savvy project manager looks at the Total Cost of Ownership (TCO), which includes:

• Capital Expenditure (CapEx): The upfront cost of design, equipment, and installation.
• Energy Costs: The single largest operational expense over the system's lifespan. A slightly more expensive but highly efficient system (like VRF) can generate significant savings year after year.
• Maintenance & Repair Costs: The cost of routine tune-ups and unexpected repairs. Some systems require more specialized—and therefore more expensive—maintenance.

When you evaluate proposals, don't just compare the initial price tag. Ask for projected energy usage and maintenance schedules to build a 10- or 15-year TCO model. This is the true measure of your investment.

Phase 2: From Blueprint to Reality – A Project Management Checklist

With a solid design and budget, it's time for execution. Seamless installation requires tight coordination between your HVAC contractor, architect, and other trades.

Here is a simplified project management checklist to guide you through the process:

Pre-Construction & Submittals

• Confirm Final Equipment Selection: Ensure all chosen equipment (RTUs, air handlers, chillers) has been approved and ordered with sufficient lead time.
• Review Coordination Drawings: Your HVAC partner should provide drawings that overlay their system with the building's structural, electrical, and plumbing plans to identify and resolve any conflicts before work begins.
• Establish Project Timeline: Agree on key milestones for ductwork rough-in, equipment setting, and startup.

Installation & On-Site Management

• Ductwork Installation & Sealing: Verify that ductwork is installed as per the design and that all seams are properly sealed to prevent energy loss. Leaky ducts are a primary source of inefficiency.
• Equipment Setting: Ensure large equipment like rooftop units or chillers are set correctly and that all structural, electrical, and plumbing connections are made to spec.
• Controls & Wiring: This is the nervous system of your HVAC. Ensure low-voltage wiring for thermostats and sensors is run correctly and integrated with the Building Management System (BMS).

Commissioning & Handover

• System Startup & Testing: The contractor should perform a systematic startup procedure to ensure all components are functioning correctly.
• Test and Balance (TAB): A third-party technician should test the system to ensure it's delivering the specified airflow to every single room and zone, making adjustments as needed.
• Owner Training & Documentation: Your team should be thoroughly trained on how to operate the system. Receive all warranties, manuals, and as-built drawings for future reference.

The Brains of the Operation: Integrating with a Building Management System (BMS)

For most modern commercial buildings, the HVAC system shouldn't operate in a vacuum. Integrating it with a Building Management System (BMS) transforms it from a simple utility into a smart, responsive asset.

A BMS provides a single, centralized dashboard to:

• Monitor and Control: View real-time performance, adjust temperature setpoints, and create schedules for the entire building.
• Analyze Data: Track energy consumption patterns to identify opportunities for further efficiency improvements.
• Enable Predictive Maintenance: Get automated alerts for potential issues before they cause a system failure, preventing costly downtime and emergency AC repair.

Discussing BMS integration during the design phase is crucial for future-proofing your building and maximizing operational efficiency.

Choosing Your Partner: How to Select the Right HVAC Contractor

The success of your project ultimately depends on the expertise of the partner you choose. The system design is only as good as the team that installs it.

Look for a contractor with:

• Proven Experience: Ask for a portfolio of projects similar in size and scope to yours.
• In-House Design Capabilities: A partner who can both design and build the system ensures seamless communication and accountability from start to finish.
• Deep Local Knowledge: A contractor familiar with North and Northeast Georgia's climate challenges and building codes can anticipate issues others might miss.
• A Commitment to Partnership: The right team acts as a trusted advisor, guiding you through every decision and focusing on the long-term value of your investment.

A new commercial HVAC system is a complex undertaking, but it doesn’t have to be overwhelming. By focusing on a strong design foundation, evaluating the total cost of ownership, and choosing an experienced partner, you can deliver a project that provides comfort and value for decades to come.

If you’re planning a new construction or major renovation in Hall, Gwinnett, Forsyth, or the surrounding counties, our team at Epic Air is ready to help. Contact us for a free estimate and let’s discuss how we can bring our 28 years of experience to your project.

Frequently Asked Questions (FAQ)

1. How long does a commercial HVAC system design and installation project typically take?

‍The timeline varies significantly with project size and complexity. A small retail space might take a few weeks, while a large, multi-story office building can take several months. The design and submittal phase alone can last 4-8 weeks, followed by installation, which is coordinated with the overall construction schedule.

2. Is it more cost-effective to repair an old system or install a new one during a renovation?

‍This depends on the age and condition of the existing system. If a unit is over 15 years old, frequently needs repairs, and uses outdated refrigerant, a full replacement is almost always the more cost-effective long-term solution. A new, high-efficiency system will provide substantial energy savings that help offset the upfront cost.

3. What is the most energy-efficient type of commercial HVAC system?

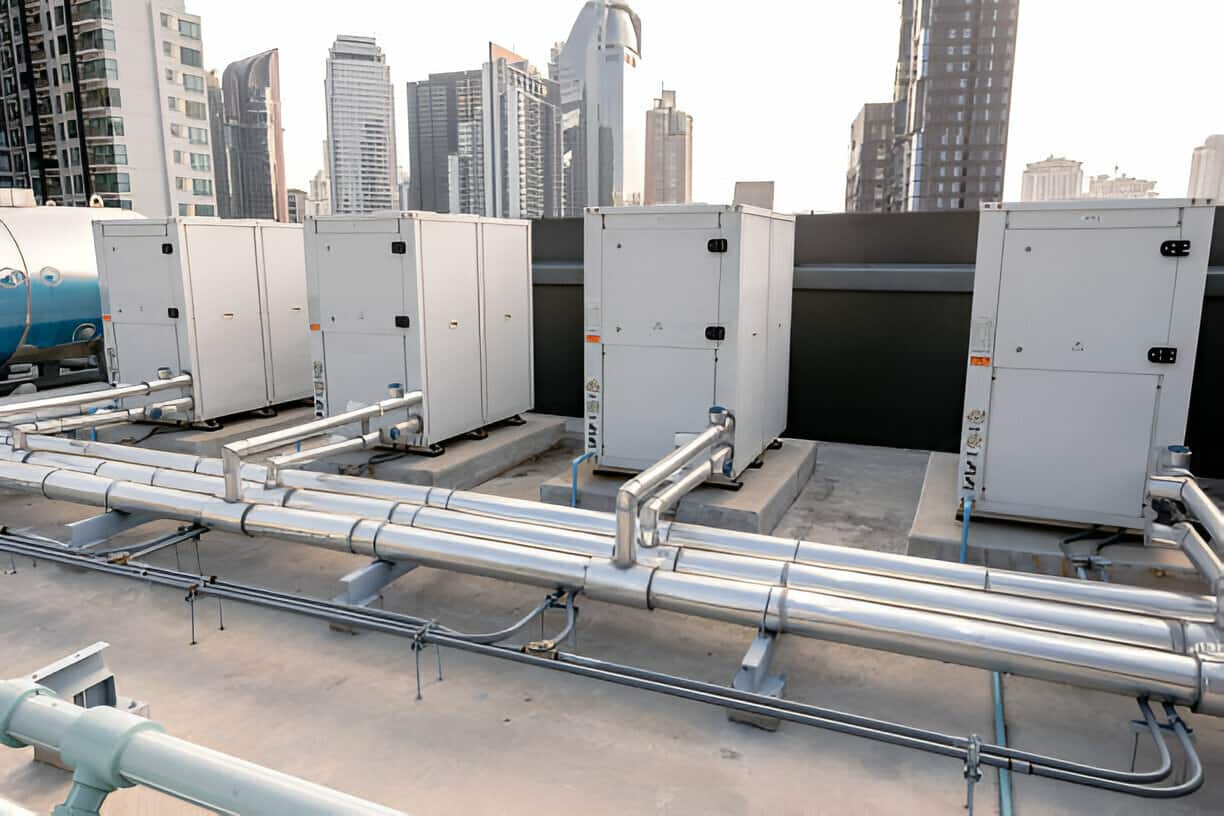

‍Generally, Variable Refrigerant Flow (VRF) systems offer the highest levels of energy efficiency, especially for buildings with diverse, zoned heating and cooling needs. Their ability to move heat from one part of a building to another instead of just expelling it outside dramatically reduces energy consumption.

4. How can I ensure good indoor air quality (IAQ) in my new building's design?

‍Great IAQ starts with proper ventilation that meets or exceeds ASHRAE standards. Beyond that, consider incorporating advanced filtration (MERV 13 or higher), UV-C germicidal lights within the air handlers, and energy recovery ventilators (ERVs) that bring in fresh air without wasting energy.
